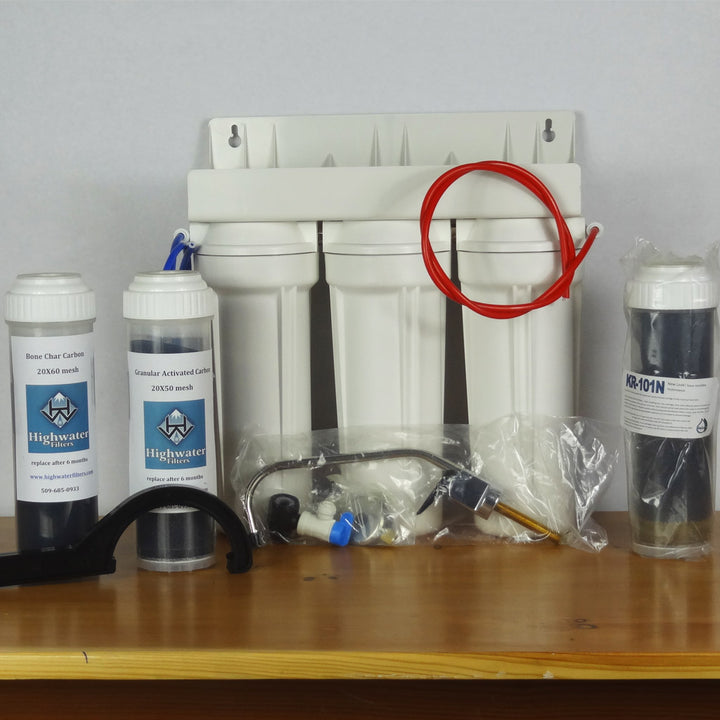

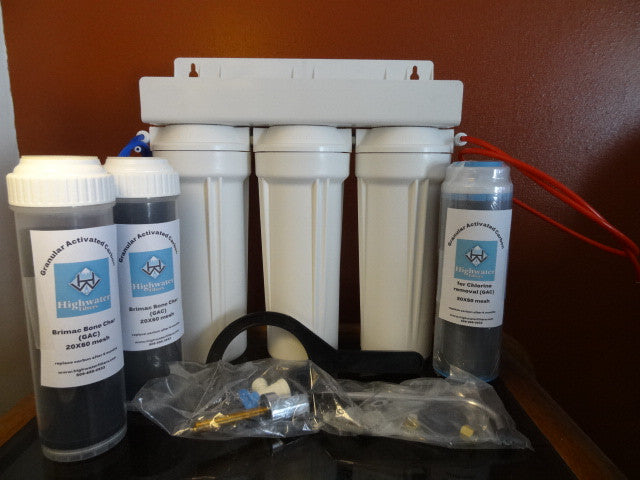

Triple Under Counter Housing with 1 Bone Char, 1 Wide Spectrum and 1 GAC filter

OVERVIEW

Triple under counter filter housing with 1 Bone Char, 1 KR101N Wide Spectrum and 1 GAC (Granular Activated Carbon). Comes with everything needed to install under counter. Plumbing expertise may be necessary.

The best choice for Fluoride, Chemicals (including PFOA, PFOS), Heavy Metals and Chlorine removal.

BONE CHAR 20x60 Mesh is a unique granular natural carbon media produced from aged bones. It’s surface area and base material lends itself to the adsorption of a range of heavy metals including lead, aluminum, manganese, silver as well as non-metals such as fluoride and bromine. Can be used in numerous bone char water filter designs and in combination with standard granular activated charcoal filter.

Bone char is different from activated carbon in that it contains both carbon surface area and hydroxyapatite lattice surface area. Kosher/ ANSI 61 Certified.

GAC (Granular Activated Carbon) 20X50 mesh

*Activated carbon is commonly used to adsorb natural organic compounds, taste and odor compounds, and synthetic organic chemicals in drinking water treatment. Adsorption is both the physical and chemical process of accumulating a substance at the interface between liquid and solids phases. Activated carbon is an effective adsorbent because it is a highly porous material and provides a large surface area to which contaminants may adsorb. The two main types of activated carbon used in water treatment applications are granular activated carbon (GAC) and powdered activated carbon (PAC).
*from EPA website go here for more info.

KR-101N by Cuzn

For municipal and well water!

    • Durable housing.
    • Filters over 600 types of contaminants including heavy metals (97% Lead reduction!), chlorine, herbicides, pesticides, many pharmaceuticals & more
    • Designed for use with chlorine treated municipal water &/or well water applications
    • Breaks down contaminants in 3 stages, a proprietary reticulated KDF-55 stage, high purity – acid washed coconut shell GAC stage & a 5 micron sediment/particulate stage
  • Replace after 1 year.
  • Made in USA by Cuz'n Water Filtration

For more info on KR-101N go here.

Includes (3) 10"x2.5" cartridges. Fits standard filter housings.

Rinse off any charcoal dust before application.

Replace Bone char and GAC cartridges after 6 months; KR-101N after 1 year.

Housing made in U.S.A.

Technical Specs

Bone Char

  US Standard Mesh Size

 20 X 60
    Greater than 20  5% maximum
    Less than 60  5% maximum

 Surface Area (BET N2)  200 m2/gm
 Hardness Number  80 minimum
 Moisture  5% maximum as packed
 Bulk Density (lbs/ft3)  40 typical
 Acid Soluble Ash  3% typical
 pH  8 - 10 typical



Installation Instructions

For a better view, go here.

Lab Results

Based on 1 bone char and 1 GAC filter.

Fluoride Removal

Chlorine Removal



Title

$234.00 $284.00

Add to Wishlist
Description

Triple under counter filter housing with 1 Bone Char, 1 KR101N Wide Spectrum and 1 GAC (Granular Activated Carbon). Comes with everything needed to install under counter. Plumbing expertise may be necessary.

The best choice for Fluoride, Chemicals (including PFOA, PFOS), Heavy Metals and Chlorine removal.

BONE CHAR 20x60 Mesh is a unique granular natural carbon media produced from aged bones. It’s surface area and base material lends itself to the adsorption of a range of heavy metals including lead, aluminum, manganese, silver as well as non-metals such as fluoride and bromine. Can be used in numerous bone char water filter designs and in combination with standard granular activated charcoal filter.

Bone char is different from activated carbon in that it contains both carbon surface area and hydroxyapatite lattice surface area. Kosher/ ANSI 61 Certified.

GAC (Granular Activated Carbon) 20X50 mesh

*Activated carbon is commonly used to adsorb natural organic compounds, taste and odor compounds, and synthetic organic chemicals in drinking water treatment. Adsorption is both the physical and chemical process of accumulating a substance at the interface between liquid and solids phases. Activated carbon is an effective adsorbent because it is a highly porous material and provides a large surface area to which contaminants may adsorb. The two main types of activated carbon used in water treatment applications are granular activated carbon (GAC) and powdered activated carbon (PAC).
*from EPA website go here for more info.

KR-101N by Cuzn

For municipal and well water!

    • Durable housing.
    • Filters over 600 types of contaminants including heavy metals (97% Lead reduction!), chlorine, herbicides, pesticides, many pharmaceuticals & more
    • Designed for use with chlorine treated municipal water &/or well water applications
    • Breaks down contaminants in 3 stages, a proprietary reticulated KDF-55 stage, high purity – acid washed coconut shell GAC stage & a 5 micron sediment/particulate stage
  • Replace after 1 year.
  • Made in USA by Cuz'n Water Filtration

For more info on KR-101N go here.

Includes (3) 10"x2.5" cartridges. Fits standard filter housings.

Rinse off any charcoal dust before application.

Replace Bone char and GAC cartridges after 6 months; KR-101N after 1 year.

Housing made in U.S.A.

Technical Specs

Bone Char

  US Standard Mesh Size

 20 X 60
    Greater than 20  5% maximum
    Less than 60  5% maximum

 Surface Area (BET N2)  200 m2/gm
 Hardness Number  80 minimum
 Moisture  5% maximum as packed
 Bulk Density (lbs/ft3)  40 typical
 Acid Soluble Ash  3% typical
 pH  8 - 10 typical



Installation Instructions

For a better view, go here.

Lab Results

Based on 1 bone char and 1 GAC filter.

Fluoride Removal

Chlorine Removal
