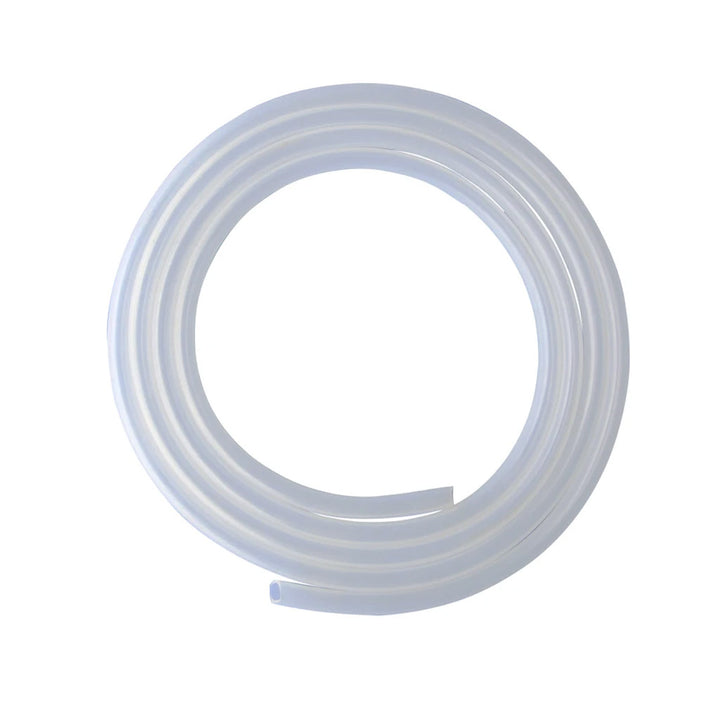

This 3/8" silicone hose is sold by the foot and cut in one continuous length when ordering multiple feet.
Made in the USA by New Age Industries, this Silcon® unreinforced silicone tubing is peroxide cured and translucent. It can be used with Vortex Non-electric Water Distiller Kits or other compatible applications.
Product Details
- 3/8" silicone hose
- Sold by the foot
- $6.00 per foot
- Order as many feet as needed
- Cut in one continuous length when ordering multiple feet
- For use with Vortex Non-electric Water Distiller Kits or other compatible applications
- Made in the USA by New Age Industries
- Product name: Silcon®
- Material: silicone
- Product type: unreinforced silicone tubing, peroxide cured
- Translucent natural color
- Unreinforced construction
Dimensions
| Specification | Value |
|---|---|
| ID | .375" / 3/8" |
| OD | .625" / 5/8" |
| Wall | .125" / 1/8" |
Technical Specs
| Specification | Value |
| Working PSI at 70°F | 10 |
| Burst PSI at 70°F | 30 |
| Maximum Operating Temperature | 500°F |
| NSF Maximum Operating Temperature | 350°F |
| Brittle Temperature | -100°F |
| Shore Hardness | 50A ±5 |
| Tensile Strength at Break | 1444 PSI |
| Modulus at 100% | 186 |
| Elongation at Break | 608% |
| Tear Resistance, Die B ppi | 125 |
Applications
Listed applications include appliances, beverage, computer manufacture, deionized water transfer, dental, duplicating equipment, food, gaskets, seals, O-rings, hot water feeds, insulation sleeves, laboratory, medical, peristaltic pumps, and thermal protection.
Certifications and Material Compliance
- NSF-51 listed for food equipment materials
- Animal-derived ingredient free
- BPA free
- FDA 21 CFR 177.2600
- Latex free
- Phthalate free
- REACH
- RoHS
Footnotes
If used in an NSF application, the maximum operating temperature is limited to 350°F.
Working PSI information was performed on hydrostatic test equipment at ambient temperature and is based on the ASTM D1599 method.
